Home > Ultra Thin LiPo Battery >

3.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 084949

Product Categories
Hunan AUK New Energy Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 084949

  • 1
  • 2

Brand Name : AUK

Model Number : 084949

Certification : MSDS

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/day

Delivery Time : 5-8 Work Days

Packaging Details : Carton box

Capacity : 140mAh

Certifications : MSDS

Chemistry : Lithium Polymer

Operating Temperature : -20°C to 60°C

Type : Rechargeable

Contact Now

3.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 084949
3.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 0849493.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 084949
1. Mechanical Characteristics
Cell
084949
PCM
No
NTC
No
Weight
appr. 2.8 g
Configuration
1S1P
Demension
0.8*49*49mm(MAX)
2. Electrical Specification
Capacity
140mAh
Nominal Voltage
3.7V
Energy
0.518Wh
Internal Impedance
less than 300mΩ
Max. Charge Voltage
4.2V
Discharge Cut Off
2.75V
Max. Charge Current
140mAh
Max. Discharge Current
140mAh
Standard Charge Current
28mA
Standard Discharge Current
28mA
Charge Temp. Range
0℃ to 45℃
Discharge Temp. Range
-20℃ to 60℃
Storage Temp. Range
1 year at -20℃ to +30℃
Cycle life
100 cycles ≥92%
3 months at -20℃ to +45℃
300 cycles ≥88%
1 month at -20℃ to +60℃
500 cycles ≥80%
3. Cell protection
Overcharge Detection
-
Over discharge Detection
-
Overcurrent Detection
-
Short protection

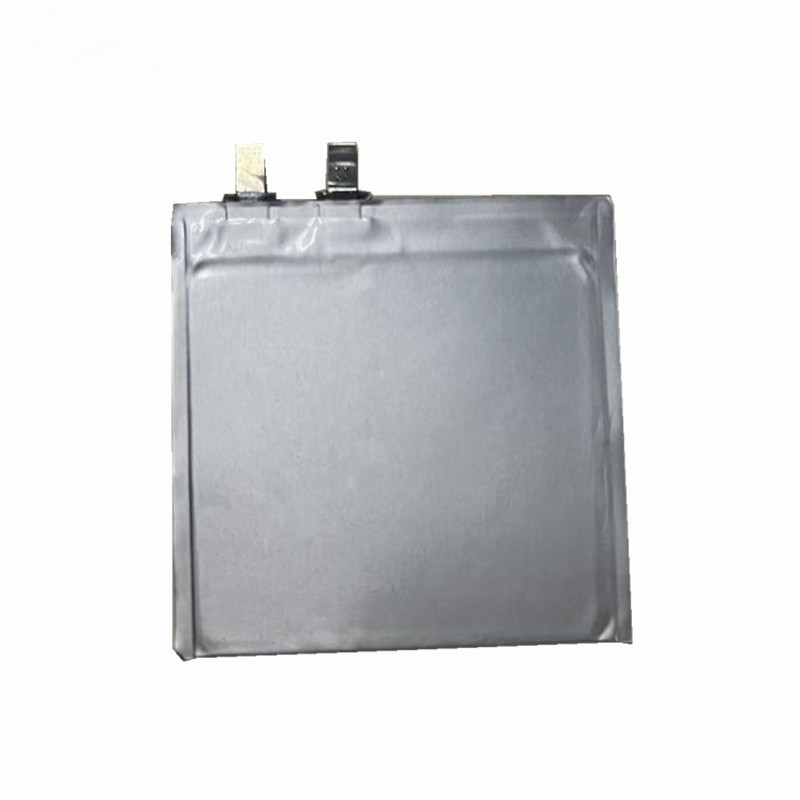

Battery size 0.8×49×49mm
Other Ultra thin lipo battery as below:
No Model capacity(mAh) Voltage(V) Thickness(mm) Width(mm) Length(mm)
1 AUK041850 12 3.7 0.47 18.5 50.5
2 AUK042126 8 3.7 0.50 21.8 26.1
3 AUK042255 20 3.7 0.47 22.5 55.5
4 AUK042323 8 3.7 0.47 0.5 23.5
5 AUK043030 15 3.7 0.47 30.5 30.5
6 AUK043228 15 3.7 0.47 32.5 28.5
7 AUK043251 25 3.7 0.47 32.5 51.5
8 AUK043526 12 3.7 0.47 35.0 26.5
9 AUK072247 30 3.7 0.70 22.8 47.8
10 AUK072836 30 3.7 0.70 28.0 36.0
11 AUK082025 14 3.7 0.80 20.5 25.5
12 AUK083960 100 3.7 1.00 39.5 60.5
13 AUK085045 100 3.7 0.80 50.0 45.5
14 AUK10180270 3,000 3.7 1.00 180.0 270.0
15 AUK20180270 6,000 3.7 1.80 180.0 270.0
16 AUK2029110 400 3.7 2.00 29.5 110.0
